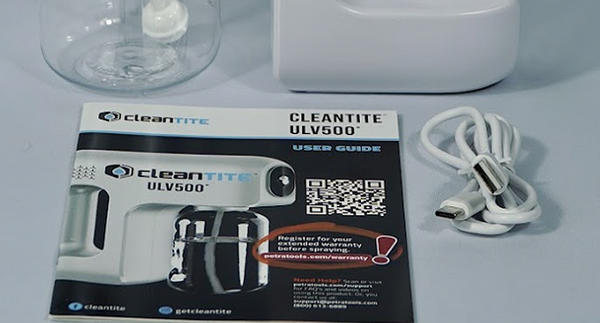

What’s In the Box?

Pre-Assembled Unit

Pre-Assembled Unit

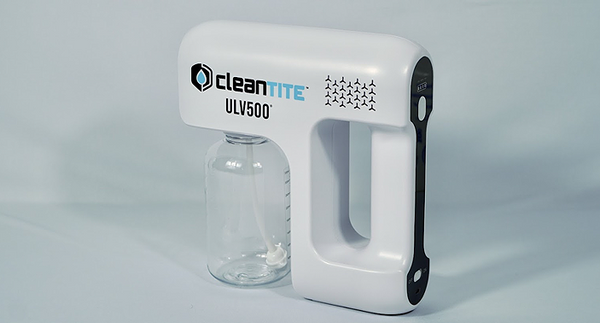

What Are the Parts of the ULV500 Fogger?

The CleanTite™ ULV500 Fogger is packed with all the features needed to deliver a fine fog mist and is consists of the following parts:

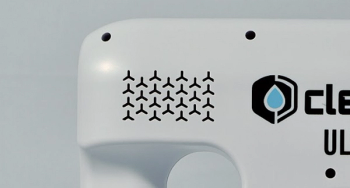

Cooling Window

The Cooling Window on the ULV500 Fogger effectively dissipates heat, maintaining an ideal temperature for your vapor.

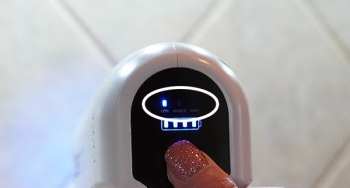

Mist Volume Indicator

Effortlessly monitor your desired fog density with this easy-to-read mist volume indicator.

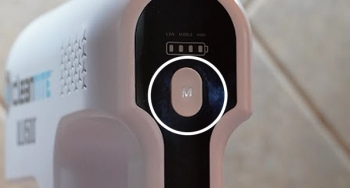

Mist Volume Adjustable Button

Find the perfect mist level for any situation with a simple press of this adjustable button.

Rechargeable Battery

No need for constant battery replacements—the ULV500 Fogger comes with a reliable and eco-friendly rechargeable battery.

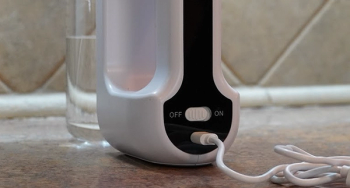

Power Switch

Activate your ULV500 Fogger in a snap with this user-friendly power switch.

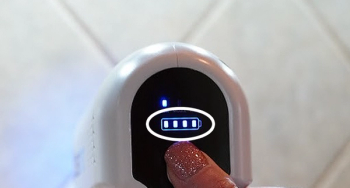

Battery Power Indicator

Stay informed of your device's battery life with this clear and convenient power indicator.

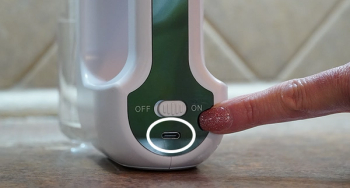

Charging Port

Refuel your ULV500 Fogger with ease using the accessible charging port designed for hassle-free recharging.

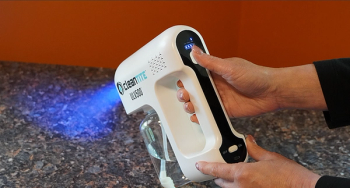

Blue LED Light

The blue LED light indicates the area where fluid is being sprayed.

How to use the ULV500 Fogger?

Step 1

Charge the unit:

If you have just received your CleanTite™ ULV500 Fogger, charge it for 6-8 hours to fully charge the lithium-ion battery.

Step Step 1

Step 2

Fill the tank:

Unscrew the clear plastic bottle and fill it with your preferred solution. Screw it tightly back onto the base of the unit.

Step Step 2

Step 3

Power up:

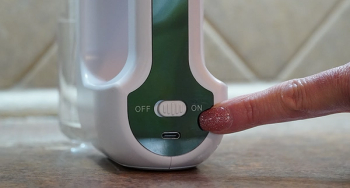

Locate the On/Off switch at the bottom back of the device. Slide the switch to the 'On' position and then press and hold the top 'M' button for 2 seconds to turn the unit on.

Step Step 3

Step 4

Adjust the pressure:

Choose from three different fog volume settings - low, medium, and high - by pressing the top 'M' button.

Step Step 4

Step 5

Apply in a sweeping motion:

The blue LED lights on the device indicate where the fog is being targeted. Apply the fog in a sweeping motion for complete coverage spaces or surfaces. To switch it off, double-tap the 'M' button.

Step Step 5

Step 6

Power down:

Move the bottom switch to the off position to turn off the CleanTite™ ULV500 Fogger.

Step Step 6

Step 7

Maintain your unit:

Empty any remaining solution and run warm soapy water through the device for 10 seconds. Follow this up with plain water to eliminate any soap residue. Regular maintenance helps to prevent clogging and ensures the longevity of your CleanTite™ ULV500 Fogger.

Step Step 7

Troubleshooting your Fogger

Check power source

Make sure that the CleanTite™ ULV500 Fogger is properly plugged in and receiving power. Check the battery level and replace the batteries if necessary.

Step Check power source

Inspect fluid level

Ensure that there is enough fluid in the CleanTite™ ULV500 Fogger's tank. If the fluid level is low, refill the tank.

Step Inspect fluid level

Confirm the settings

Verify that CleanTite™ ULV500 Fogger's settings are correct for your needs. If the fog output is too low or too high, adjust the settings accordingly.

Step Confirm the settings

Contact Support Team

If none of the above steps solve the issue, contact our customer service or technical support team for additional assistance.

Step Contact Support Team

How To Clean your Fogger?

Empty the solution

First, ensure that you empty any leftover solution from the CleanTite™ ULV500 Fogger tank.

Step Empty the solution

Run soapy water

Fill the tank with warm soapy water and run the CleanTite™ ULV500 Fogger for about 10 seconds. This step will clear out any debris that may have accumulated inside the device.

Step Run soapy water

Rinse with water

After using the soapy water, fill the tank with plain water and run the CleanTite™ ULV500 Fogger to flush out any remaining soap residue.

Step Rinse with water

How To Prime the Pump?

Fill the fluid tank

Fill the fluid tank with water and a few drops of dish soap. Do not overfill the tank.

Step Fill the fluid tank

Allow to warm up

Turn on the ULV500 Fogger and allow it to warm up for several minutes. This will give the soapy water enough time to heat up and start to produce fog.

Step Allow to warm up

Prime the Fogger

To prime the ULV500 Fogger, press and hold the "M" button or switch for several seconds. This will force the fog fluid through the heating element. Just like the cleaning process, after the soapy water solution runs through the unit, refill with just water and run that through as well. Now your atomizer fogger is ready to fog your desired solution.

Step Prime the Fogger
