What’s in the box?

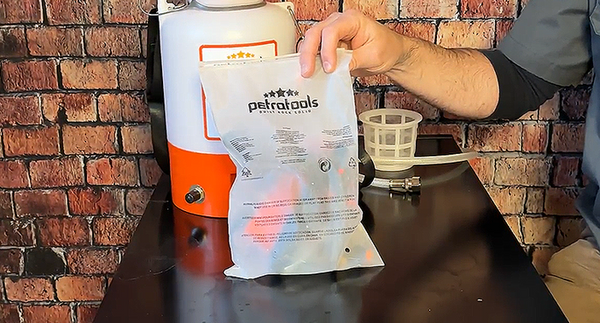

Accessory Bag

Accessory Bag

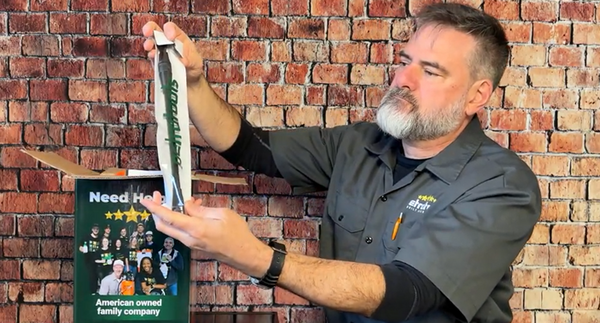

Wand

Wand

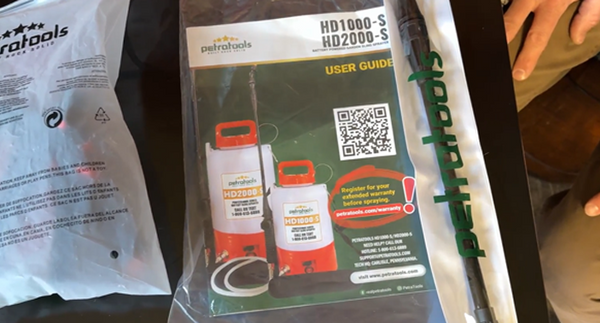

Full-color manual

Full-color manual

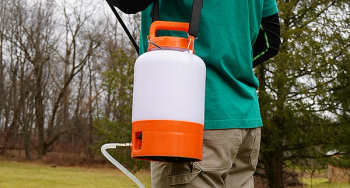

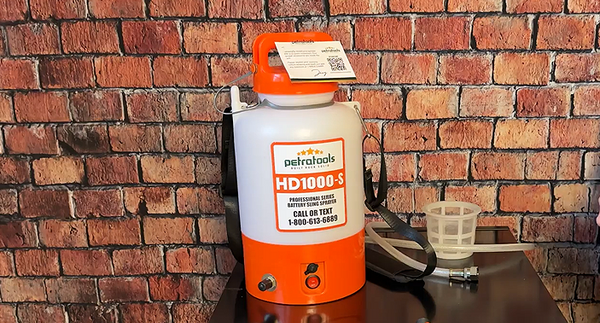

Unit (Pre-assembled)

Unit (Pre-assembled)

What are the parts of the HD1000-S?

The HD1000-S has a lot of different parts that combine to make it the great tool that it is.

Tank

HD1000-S has a 1-Gallon container that holds the liquid or solution to be sprayed.

Pump

The mechanism that creates pressure to spray the liquid or solution.

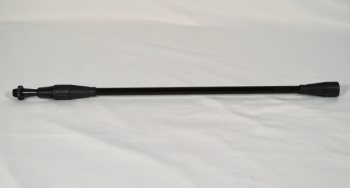

Wand

The long tube that holds the nozzle and allows the user to direct the spray.

Nozzle

An adjustable brass and flat fan nozzle for a mist spray or a long distance spray.

Battery

The super strong battery in the sprayer will give you up to 2 hours of uninterrupted spray time before needing a recharge.

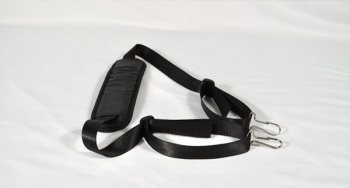

Straps

The adjustable padded side strap for easy carrying and an ergonomic handle.

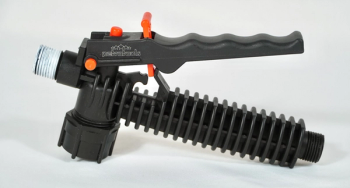

Valve Handle

The mechanism that activates the pump and starts the spray. Sturdy, lightweight handle.

How to use the HD1000-S?

Learn how to effortlessly operate the HD1000-S with our easy-to-follow user guide.

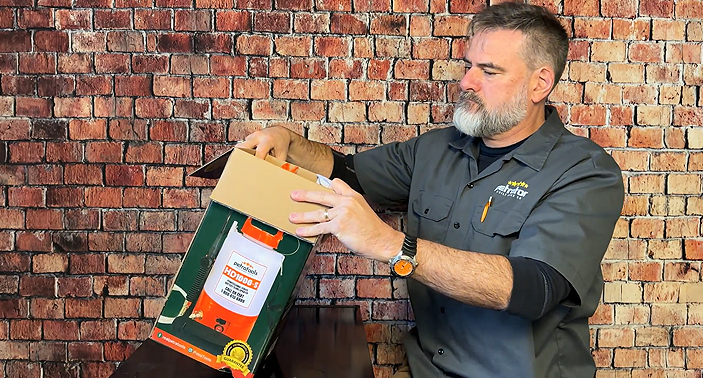

Step 1

Grab your PetraTools HD1000-S box.

Step Step 1

Step 2

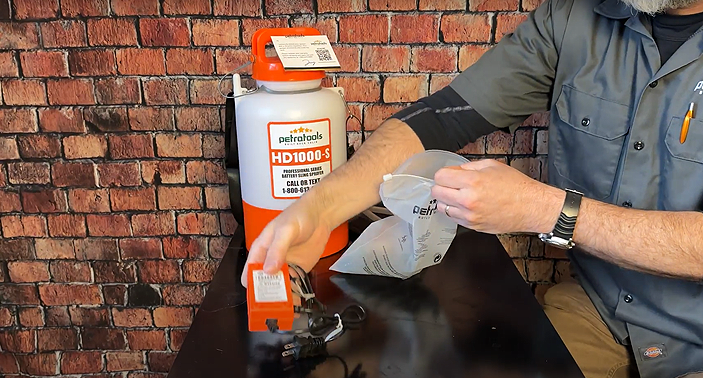

Open the box and take out what’s inside.

Step Step 2

Step 3

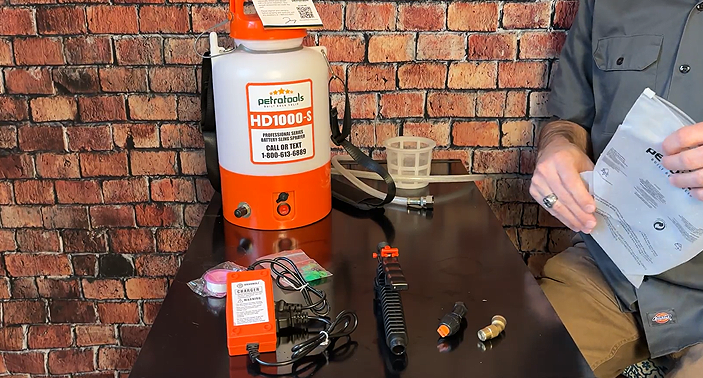

Take out what's inside the accessories bag. You should have:

  • Valve Handle
  • Nozzles
  • Plumber’s Tape
  • Charger
  • Set of Gaskets & O-Rings

Step Step 3

Step 4

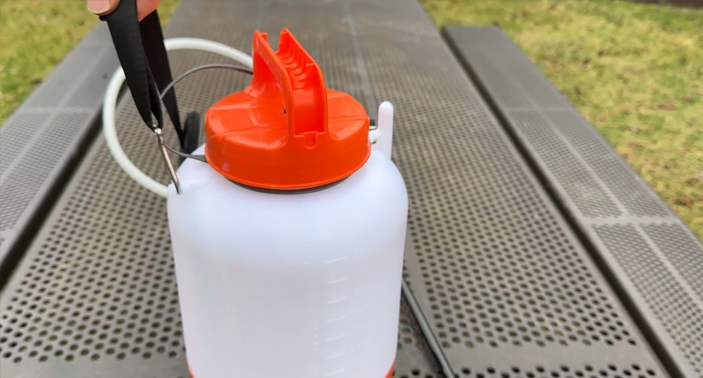

Assemble the Battery-Powered Sprayer.

Step Step 4

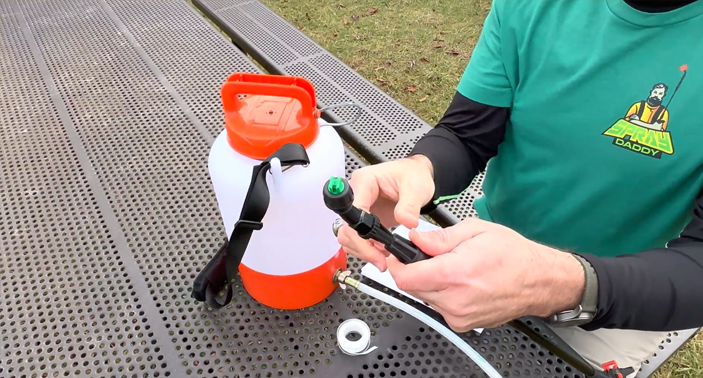

Step 5

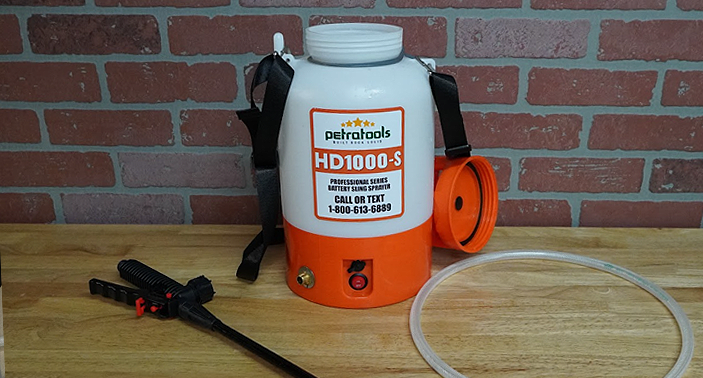

Connect the hose, valve handle, and multipurpose wand securely.

Step Step 5

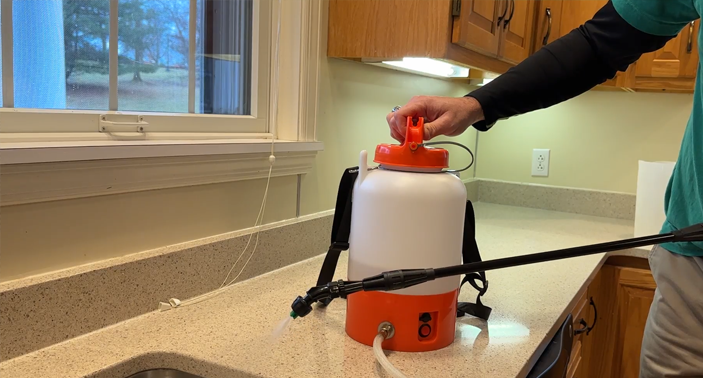

Step 6

Prime for 1-2 hours before use. Happy spraying!

Step Step 6

Troubleshooting your HD1000-S Battery-Powered Sprayer

Don't let a malfunctioning sprayer keep you from your gardening chores - use our troubleshooting guide to fix common problems with the HD1000-S battery-powered sprayer.

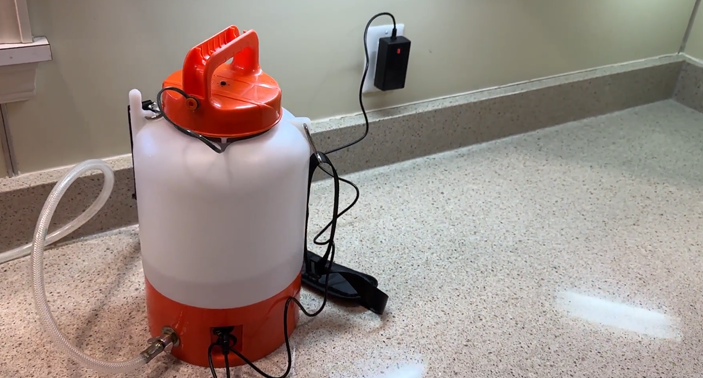

Check your tank

To do this, try plugging the charger into the unit. If the unit is charging, the charger light will turn red. When doing so, make sure that you are plugging the charger into a working outlet.

Step Check your tank

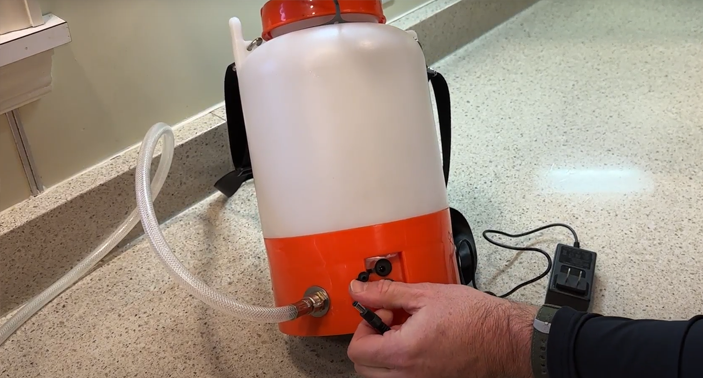

Battery Check

Plug the charger firmly into the battery charger port on the base of the unit, then plug into a 110v outlet. Your battery will last many years but may need to be replaced eventually.

Step Battery Check

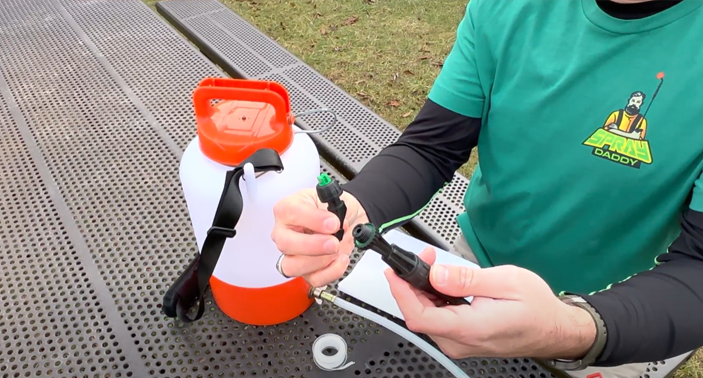

Inspect Nozzle

If the spray is not coming out of the nozzle or the spray pattern is not as expected, inspect the nozzle for blockages or damage. Unscrew the nozzle and clean it thoroughly with water to remove any dirt or debris. If the nozzle is damaged, replace it with a new one.

Step Inspect Nozzle

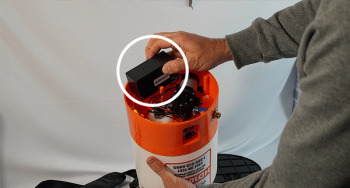

How To Change your Sprayer Battery?

Your HD1000-S' lead acid battery uses tried-and-true technology that will give you many years of safe use. With repeated use, you may notice that your battery loses its ability to hold a charge or provides only enough power for short-term jobs. You can purchase brand-new batteries from the PetraTools’ website. Here's how to remove & replace an existing battery:

Step 1

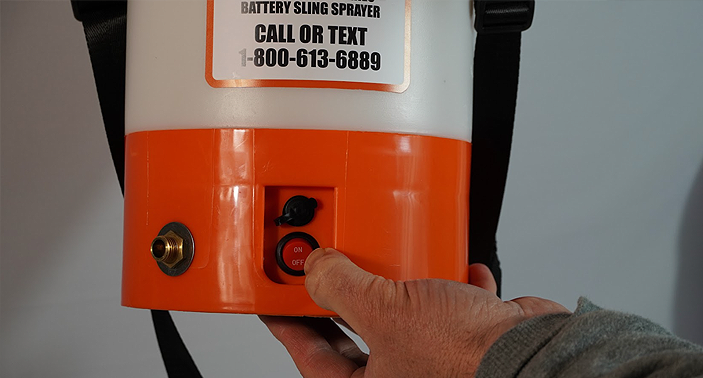

Make sure the pressure gauge is turned counterclockwise to the OFF position, and that the battery charger is not plugged into the unit.

Step Step 1

Step 2

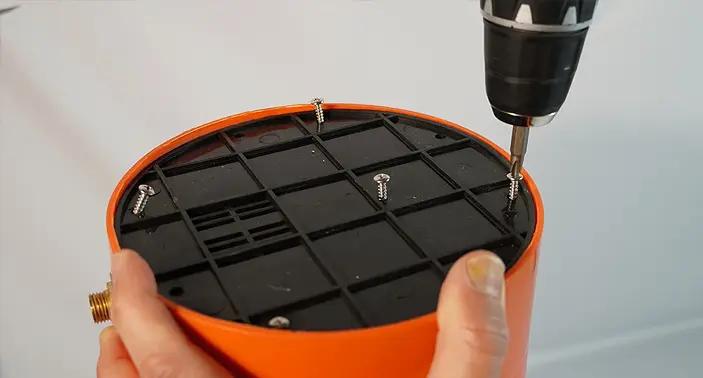

On the back of the unit, at the bottom, there’s a small battery compartment door at the bottom of the unit. Unscrew the five screws from the bottom plate to get access to the battery compartment.

Step Step 2

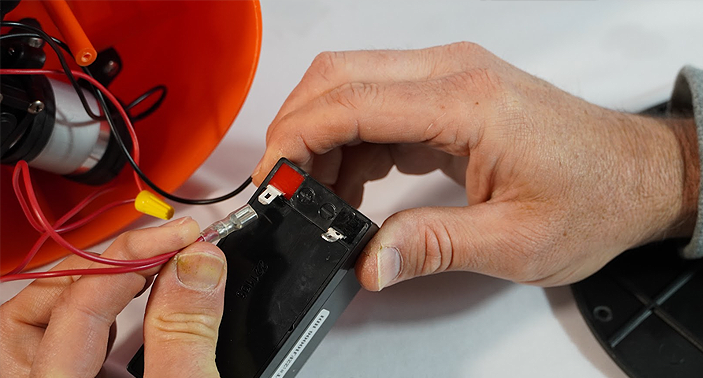

Step 3

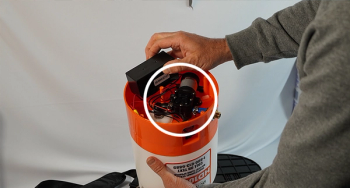

There will be a red wire & a black wire attached to the battery. You can either remove the wires at the terminal or cut the wire close to the terminal with wire cutters. Make note of which wire was attached to the + and – terminals.

Step Step 3

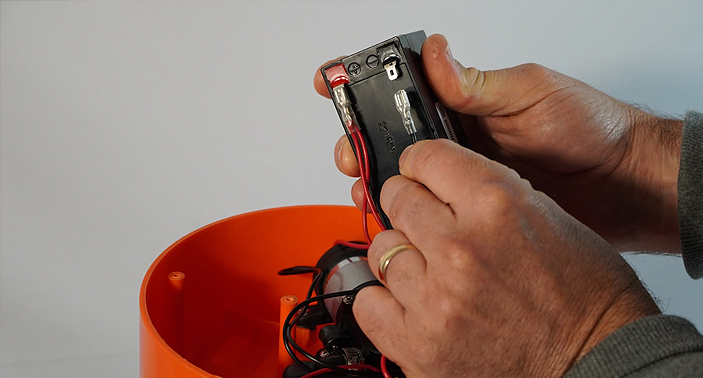

Step 4

Slide the old battery out. Please recycle!

Step Step 4

Step 5

Place the new battery with the terminals oriented the same way as the old battery. Reattach the red & black wires as they were on the old battery.

Step Step 5

Step 6

Slide the new battery back in to the battery compartment & close the black plastic door until the button clicks.

Step Step 6

How To Clean your Sprayer?

Maintaining a clean HD1000-S Battery-Powered Sprayer will keep it in good working order. Here's how:

Step 1

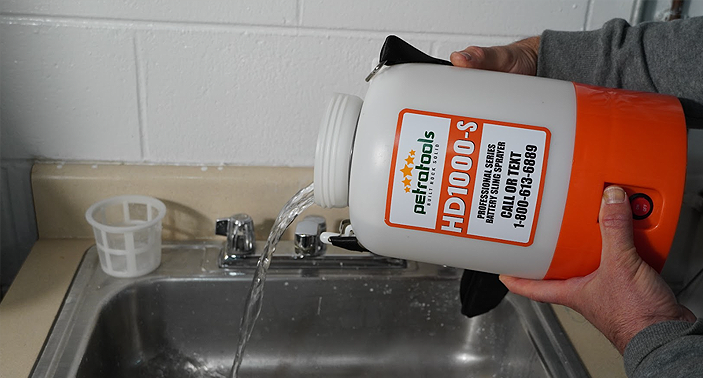

Empty any remaining solution from the tank and rinse it thoroughly with clean water.

Step Step 1

Step 2

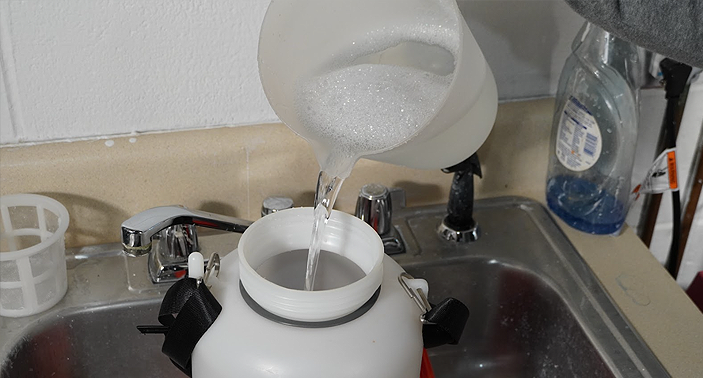

Fill the tank with a cleaning solution, such as water and vinegar or soap and water.

Step Step 2

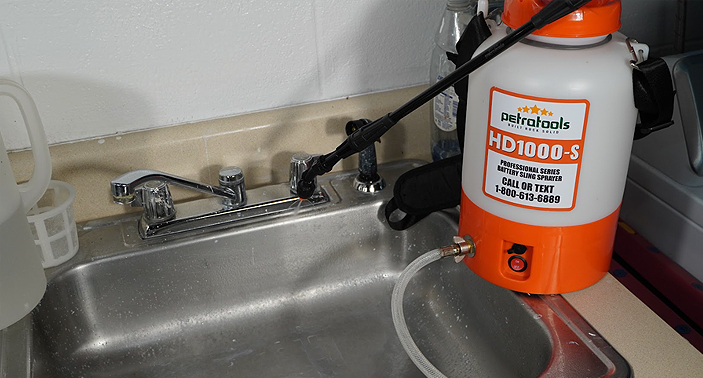

Step 3

Pump the sprayer to circulate the cleaning solution through the hose and nozzle.

Step Step 3

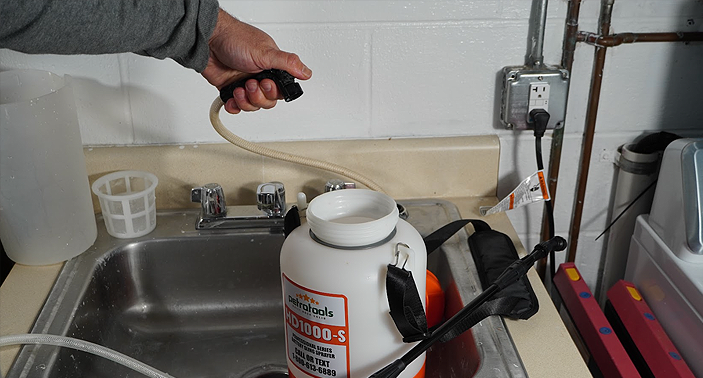

Step 4

Let the cleaning solution sit in the tank, hose, and nozzle for 15-20 minutes.

Step Step 4

Step 5

Rinse the tank, hose, and nozzle with clean water and pump the sprayer to flush out any remaining residue.

Step Step 5

Step 6

Let the sprayer air-dry, and store it in a cool, dry place.

Step Step 6

How To Prime the Pump?

Priming your HD1000-S Battery-Powered Sprayer is quite easy. Just follow these two steps:

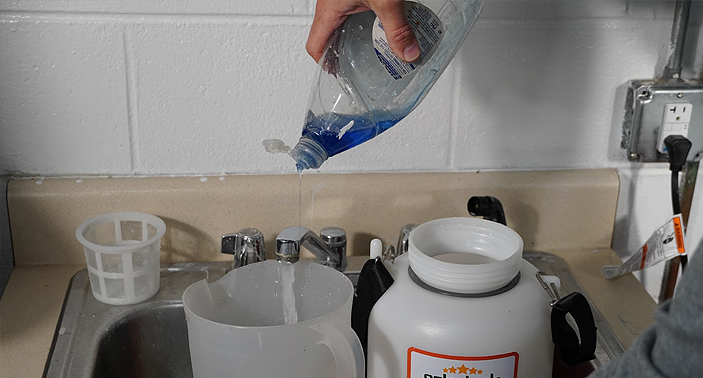

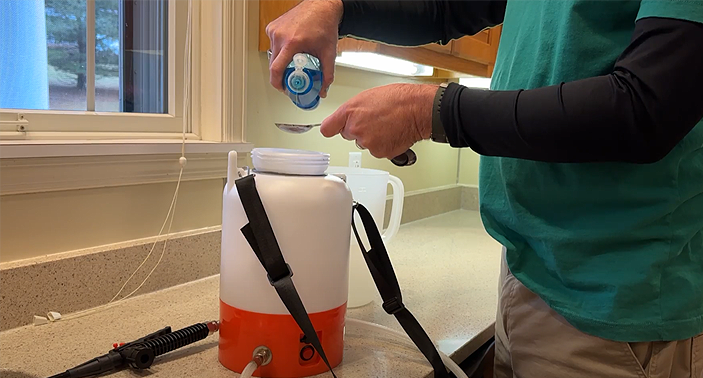

Step 1

Add half a gallon of warm soapy water into the tank.

Make sure that you use warm water and that you are adding the right amount of soap. Ideally, you should add around 1-2 teaspoons of liquid soap.

For optimal performance, we recommend priming the sprayer by running it for no more than 10 minutes. This ensures proper function without putting unnecessary strain on the pump.

Step Step 1

Step 2

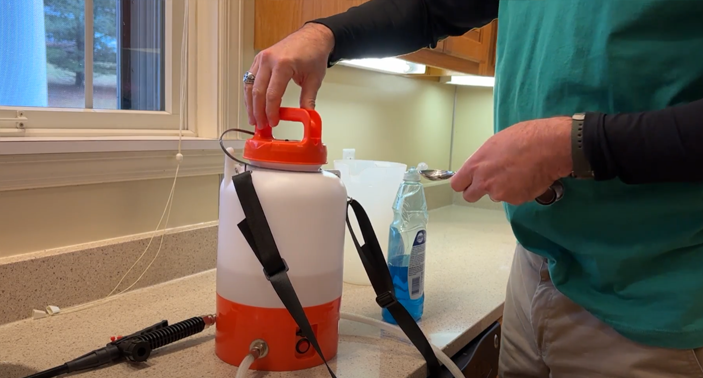

Close the lid and turn on the unit.

Make sure that you have tightly closed the lid. Depending on what's causing the issue, you could have flow coming out of your hose within a few seconds to a few minutes.

Step Step 2

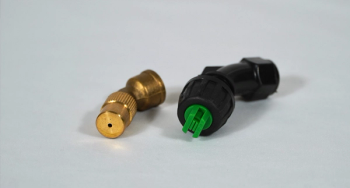

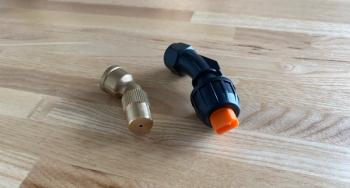

Nozzle Support Guide

Brass Nozzle

Our high-quality brass nozzle is like a garden hose which you can adjust for a strong jet of liquid.

Flat Fan Nozzle

This delivers a nice, even, and wide fan of liquid which is perfect for green grass paint or mulch paint.

Battery

The battery on your HD1000-S is designed to provide up to 2 hours of continuous spray time on a single charge. To ensure the longest battery life possible, make sure to fully charge the battery after each use and store it in a cool, dry place.

2 hours spray time

How To Prepare your Sprayer for Winter Storage?

Before you put your sprayer away for the winter, there are a few things you should do to make sure it’s in good shape for next season.

Step 1

Run 2 gallons of warm water mixed with 2 teaspoons of liquid dish soap through the unit to clean all internal parts, then run 1 more gallon of warm water only through. Spray until the unit, wand & hose are fully empty.

Step Step 1

Step 2

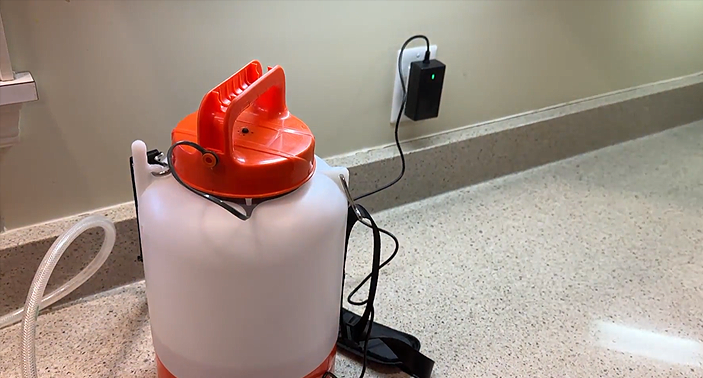

You may plug your HD1000-S unit in for constant battery maintenance, or if this is not possible, simply charge fully before storage.

Step Step 2

Step 3

Place the unit right-side-up in the warmest storage possible. Do not store long-term in temps below 32°F.

Step Step 3

Step 4

Storage in its original closed box is ideal, but if that’s not an option, you can cover it with a canvas or plastic tarp to protect it.

Step Step 4
