What’s in the box?

Nozzles

Nozzles

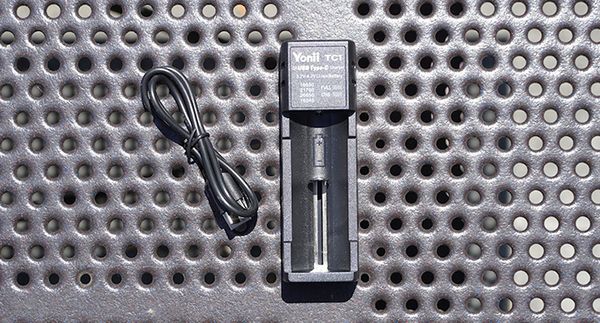

Battery Charger

Battery Charger

Wand

Wand

Full-color manual

Full-color manual

Extended warranty card

Extended warranty card

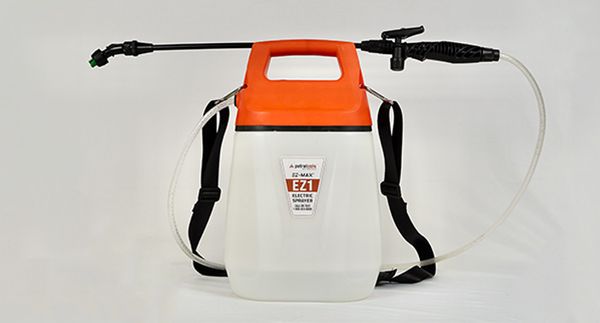

Unit (Pre-assembled)

Unit (Pre-assembled)

What are the parts of the EZ1?

The EZ1 has a lot of different parts that combine to make it a convenient tool for so many spraying needs.

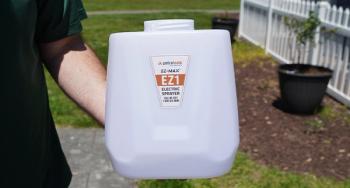

Tank

EZ1 has a 1-Gallon container that holds the liquid or solution to be sprayed.

Hose

The hose length is at least 4 ft (1.2m) for easy maneuverability.

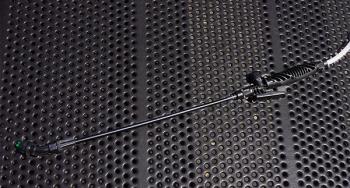

Wand

Made up of durable and lightweight materials ergonomically designed for comfortable use.

Nozzles

A round-tip nozzle that producs a circular pattern, ensuring equal distributionand flat fan nozzle for a mist spray or a long distance spray.

Rechargeable Battery

The super strong battery in the sprayer will give you up to 2 hours of uninterrupted spray time before needing a recharge.

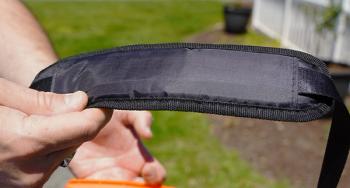

Shoulder Straps

The adjustable padded side strap for easy carrying and an ergonomic handle.

Valve Handle

The mechanism that activates the pump and starts the spray. Sturdy, lightweight handle.

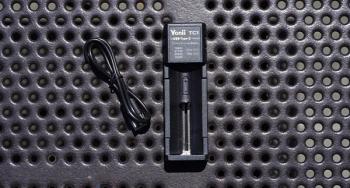

Charger

With 3.7V, this durable and efficient charger ensures up to 3 hours of spray time.

How to use the EZ1?

Learn how to effortlessly operate the EZ1 with our easy-to-follow user guide.

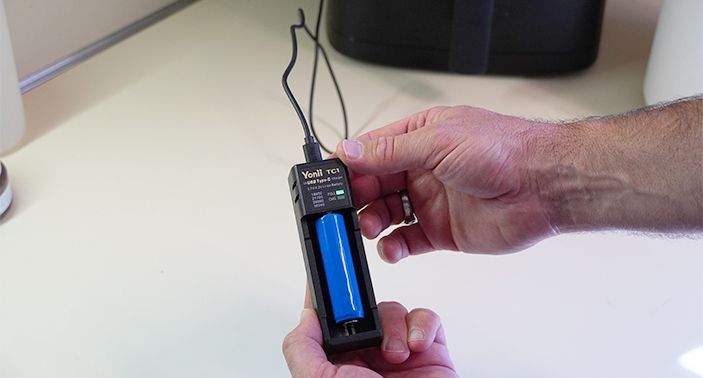

Step 1

Before using the sprayer, ensure that the battery is charged completely.

Step Step 1

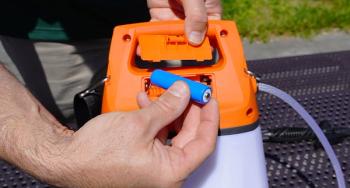

Step 2

Insert the battery into the compartment, ensuring the orientation is correct.

Step Step 2

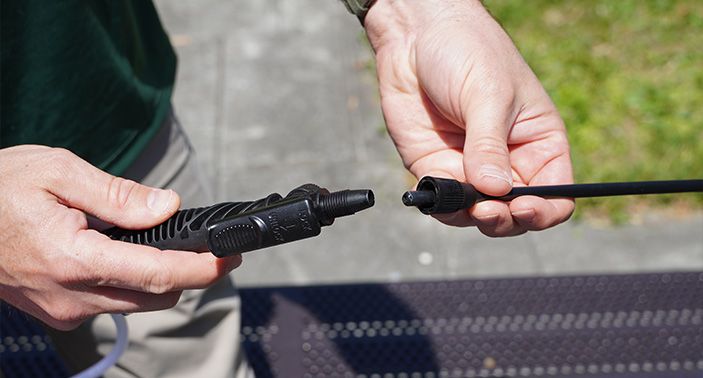

Step 3

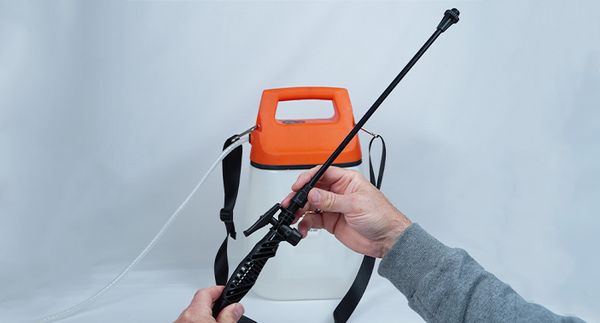

Attach the wand to the handle.

Step Step 3

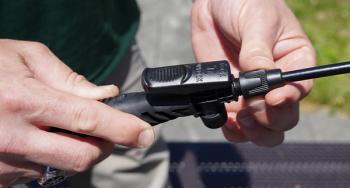

Step 4

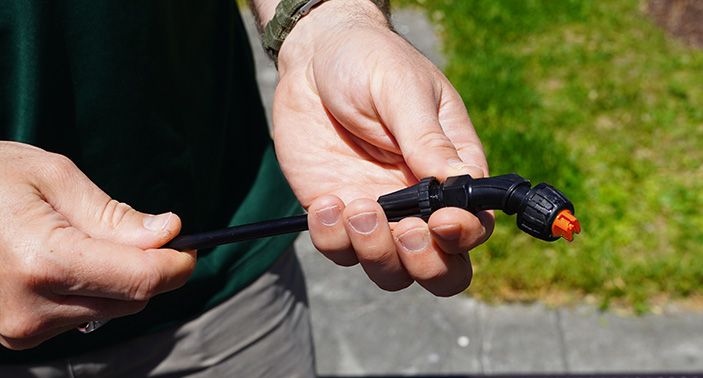

Attach the nozzle of your choice to the wand.

Step Step 4

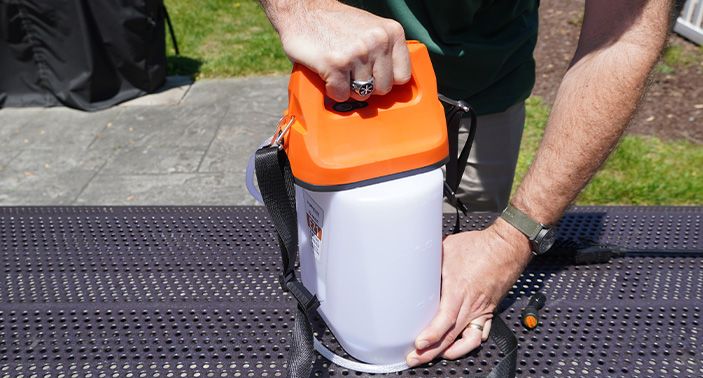

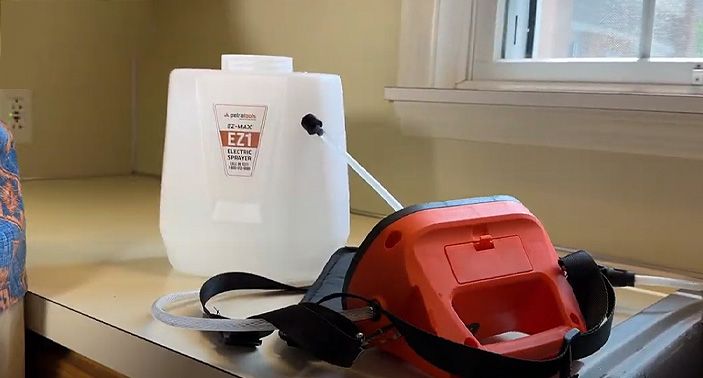

Step 5

Turn the sprayer clockwise until it reaches the unlock indication located at the front of the sprayer.

Step Step 5

Step 6

Lift the lid from the tank so you can pour your solutions easily.

Step Step 6

Step 7

After filling the tank, close the liquid by turning it counterclockwise.

Step Step 7

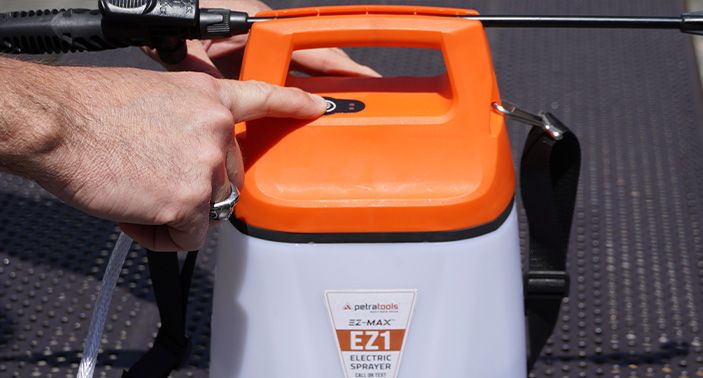

Step 8

Press the power button at the handle of the sprayer. After spraying, press the power button again to turn it off.

Step Step 8

Step 9

Make sure to prime your sprayer before use.

Step Step 9

Troubleshooting your EZ1 Electric Sprayer

Don't let a malfunctioning sprayer keep you from your gardening chores - use our troubleshooting guide to fix common problems with the EZ1 battery-powered sprayer.

Check Tank

To do this, try plugging the charger into the unit. If the unit is charging, the charger light will turn red. When doing so, make sure that you are plugging the charger into a working outlet.

Step Check Tank

Check Battery

Plug the charger firmly into the battery charger port on the base of the unit, then plug it into a 110v outlet. Your battery will last many years but may need to be replaced eventually.

Step Check Battery

Inspect Nozzle

If the spray is not coming out of the nozzle or the spray pattern is not as expected, inspect the nozzle for blockages or damage. Unscrew the nozzle and clean it thoroughly with water to remove any dirt or debris. If the nozzle is damaged, replace it with a new one.

Step Inspect Nozzle

How To Change your Sprayer Battery?

You can count on us to take care of any battery issues that may arise with your EZ1. If you ever find that your battery is losing power or unable to hold a charge, don't worry! Just visit PetraTools' website to get a new battery and keep enjoying your device without any interruptions. Here's how to remove & replace an existing battery:

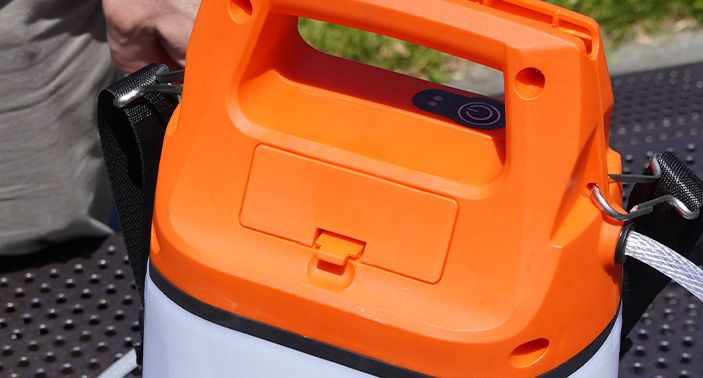

Step 1

Locate the battery port at the handle of your EZ1 sprayer.

Step Step 1

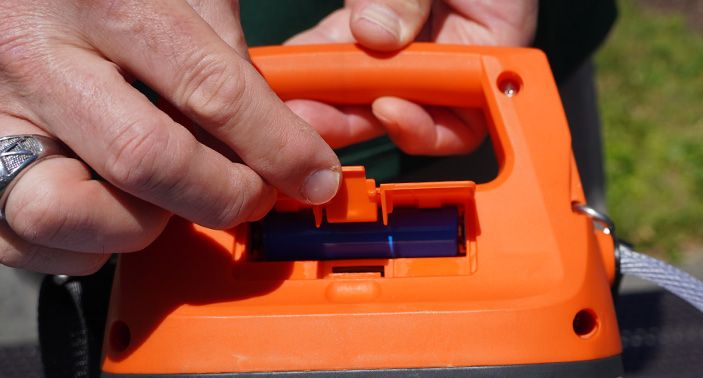

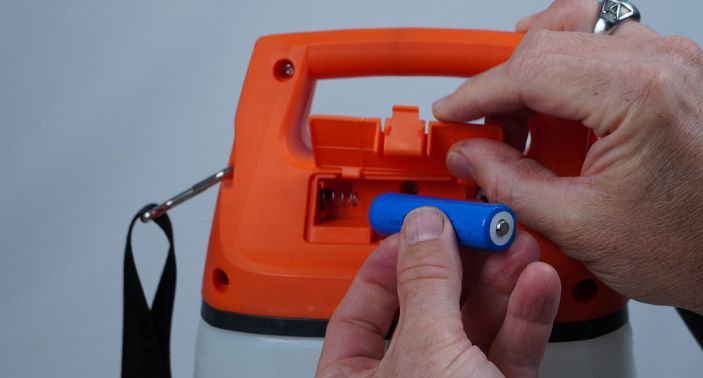

Step 2

Lift the cover to open the battery port.

Step Step 2

Step 3

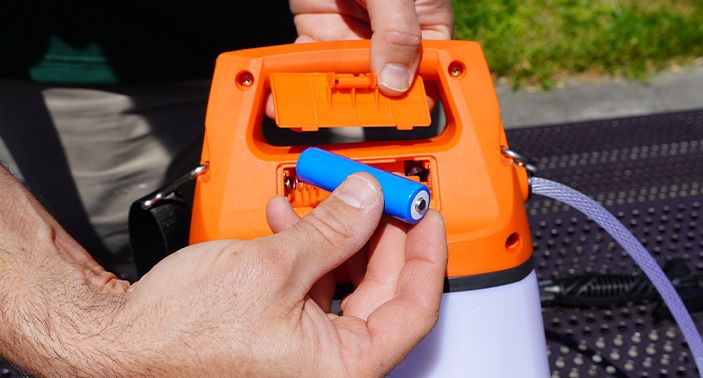

Remove the battery from the sprayer’s battery port.

Step Step 3

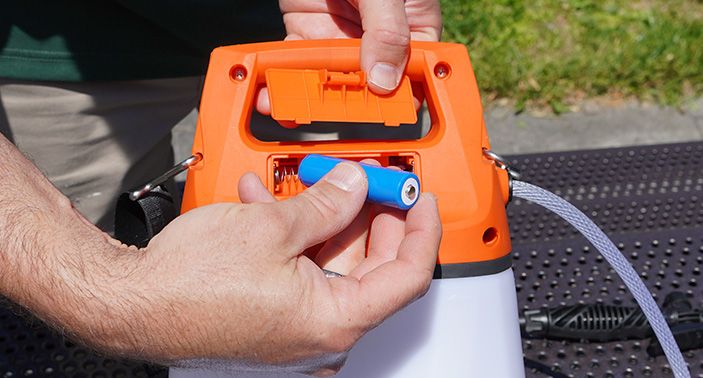

Step 4

Then, insert the battery into the sprayer’s battery compartment.Make sure that it’ssecurely in place and properly connected to the sprayer’s electrical system.

Step Step 4

How To Clean your Sprayer?

Maintaining a clean EZ1 Battery-Powered Sprayer will keep it in good working order. Here's how:

Step 1

Empty any remaining solution from the tank and rinse it thoroughly with clean water.

Step Step 1

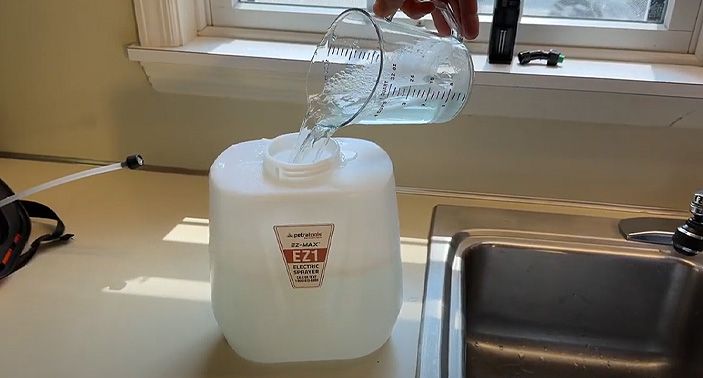

Step 2

Fill the tank with a cleaning solution, such as water and vinegar or soap and water.

Step Step 2

Step 3

Pump the sprayer to circulate the cleaning solution through the hose and nozzle.

Step Step 3

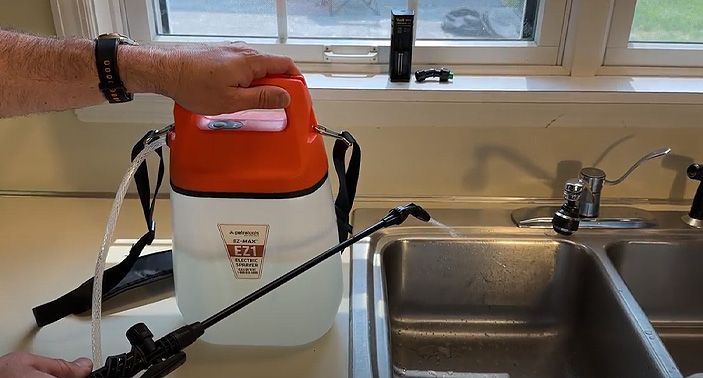

Step 4

Let the cleaning solution sit in the tank, hose, and nozzle for 15-20 minutes.

Step Step 4

Step 5

Rinse the tank, hose, and nozzle with clean water and pump the sprayer to flush out any remaining residue.

Step Step 5

Step 6

Let the sprayer air-dry, and store it in a cool, dry place.

Step Step 6

How To Prime the Pump?

Priming your EZ1 Sprayer is quite easy. Just follow these two steps:

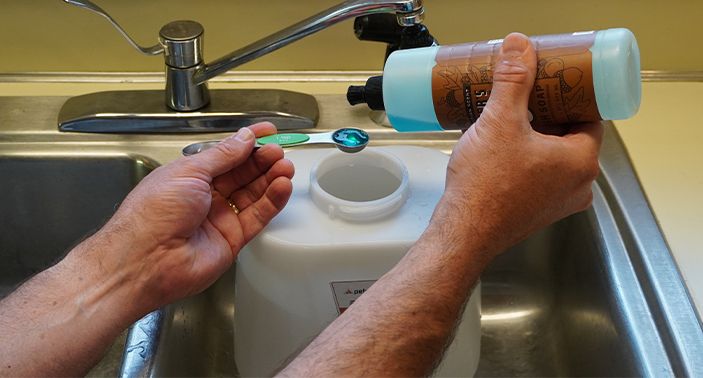

Step 1

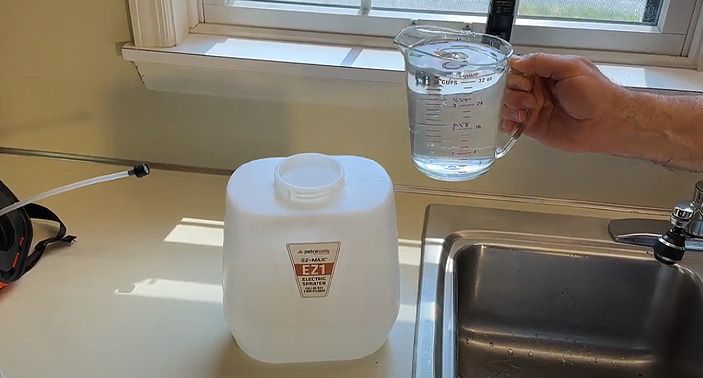

Add half a gallon of warm soapy water into the tank.

Make sure that you use warm water and that you are adding the right amount of soap. Ideally, you should add around 1-2 teaspoons of liquid soap.

For optimal performance, we recommend priming the sprayer by running it for no more than 10 minutes. This ensures proper function without putting unnecessary strain on the pump.

Step Step 1

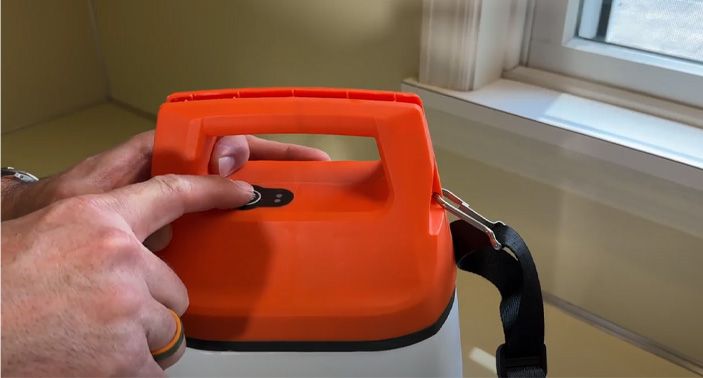

Step 2

Close the lid and turn on the unit.

Make sure that you have tightly closed the lid. Depending on what's causing the issue, you could have flow coming out of your hose within a few seconds to a few minutes.

Step Step 2

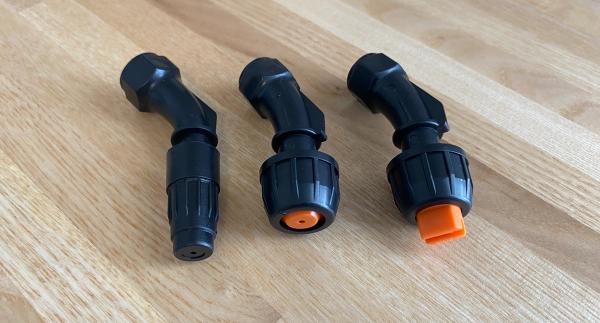

Nozzle Support Guide

Every EZ1 comes with two versatile nozzles to help you tackle your toughest spraying jobs. Here’s what each of your new EZ1 nozzles can do:

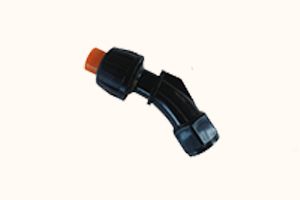

Flat Fan Nozzle

This delivers a nice, even, and wide fan of liquid which is perfect for green grass paint or mulch paint.

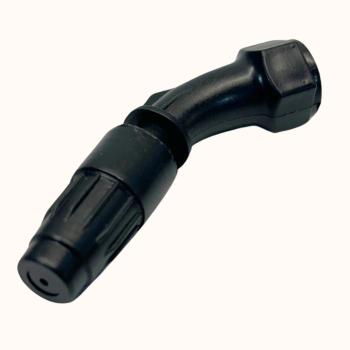

Round-Tip Nozzle

Our high-quality nozzle that produces a circular pattern for uniform coverage.

Battery

The battery on your EZ1 is designed to provide up to 2 hours of continuous spray time on a single charge. To ensure the longest battery life possible, make sure to fully charge the battery after each use and store it in a cool, dry place.

Lithium-Ion Battery

How To Prepare your Sprayer for Winter Storage?

Before you put your sprayer away for the winter, there are a few things you should do to make sure it’s in good shape for next season.

Step 1

Run 2 gallons of warm water mixed with 2 teaspoons of liquid dish soap through the unit to clean all internal parts, then run 1 more gallon of warm water only through. Spray until the unit, wand & hose are fully empty.

Step Step 1

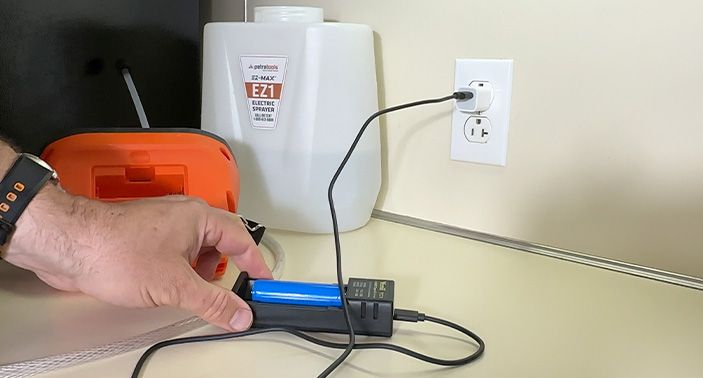

Step 2

You may plug your EZ1 unit in for constant battery maintenance, or if this is not possible, simply charge fully before storage.

Step Step 2

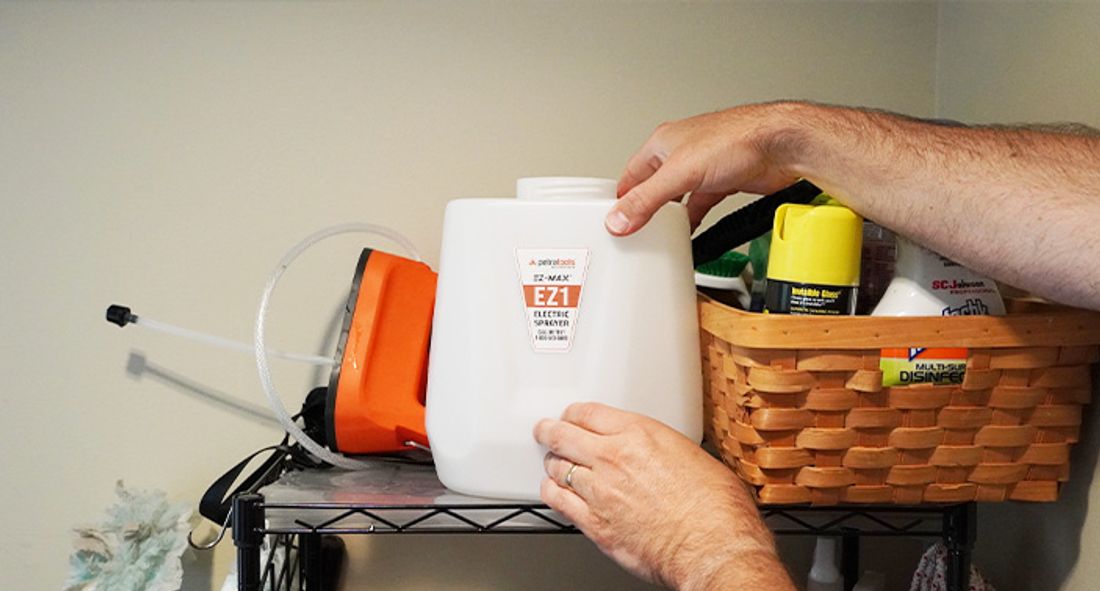

Step 3

Place the unit right-side-up in the warmest storage possible. Do not store long-term in temps below 32°F.

Step Step 3

Step 4

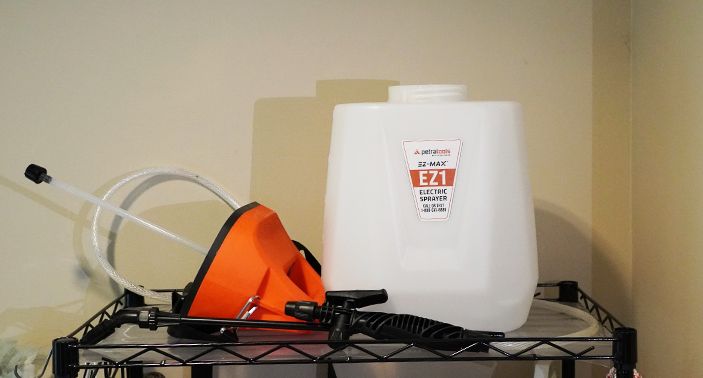

Storage in its original closed box is ideal, but if that’s not an option, you can cover it with a canvas or plastic tarp to protect it.

Step Step 4
