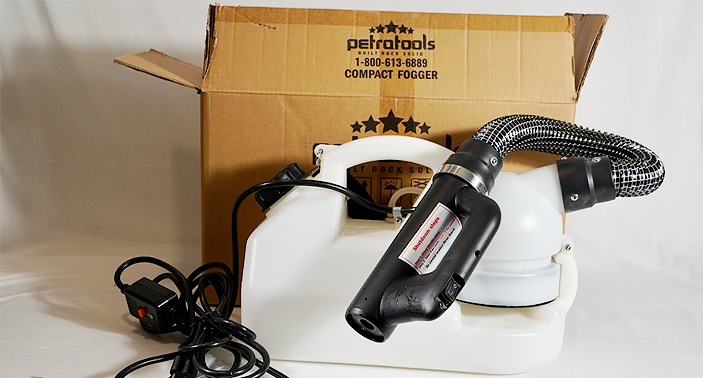

What's In the Box?

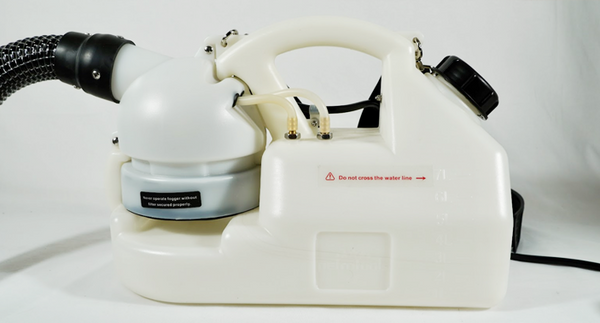

2-gallon Translucent Tank

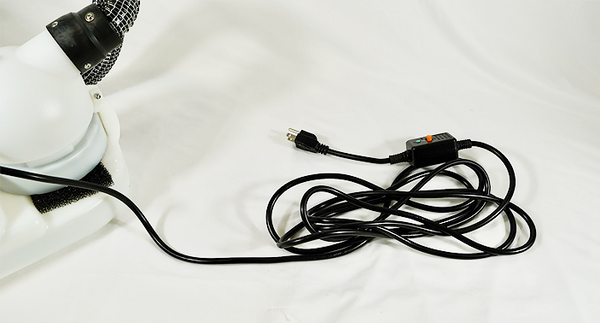

15-ft cord

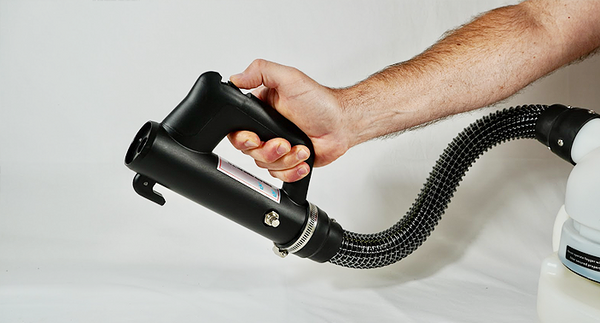

Flexible Hose with Ergonomic Handle
Warranty Card

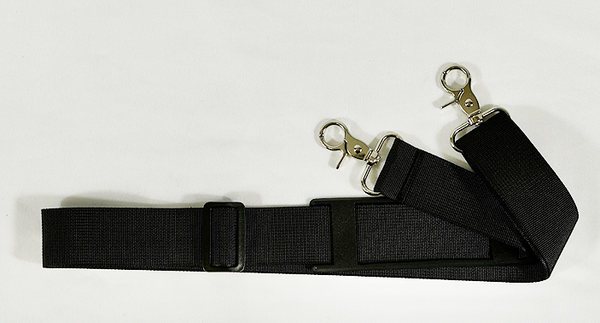

Side Strap
Full Color Manual
What Are the Parts of Compact Fogger?
The 2-Gallon compact fogger is made up of the following parts:
Tank
The 2-gallon container tank that holds the liquid or solution to be sprayed.

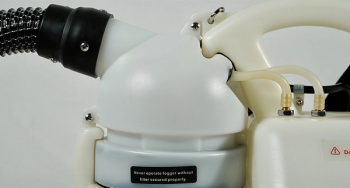

Motor
The premium 850W motor operates on 110V AC power.
Adjustable Flow Knob
The flow adjuster allows you to generate droplet sizes from 10 to 150 microns.

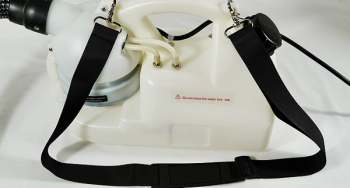

Sturdy Side Strap
The heavy-duty straps make this compact fogger comfortable to use.
Adjustable Switch
Allows you to easily change the rate of flow of your fogger mid-use. This has an average particle size of 20-50 microns.

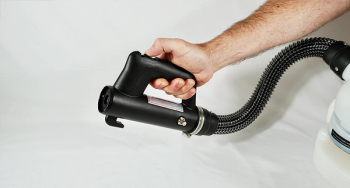

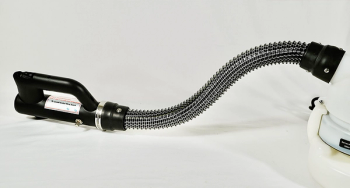

Extended Commercial Hose
Easily extend this hose above your head to reach hard to reach areas.
How To Use the Compact Fogger?
The Compact Fogger by PetraTools is a powerful and versatile disinfectant sprayer that boasts a wide range of features for effective cleaning and pest control. Here’s how to easily use it:

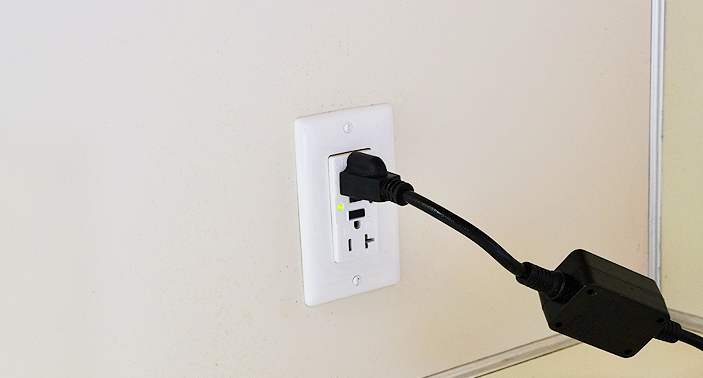

Step 1

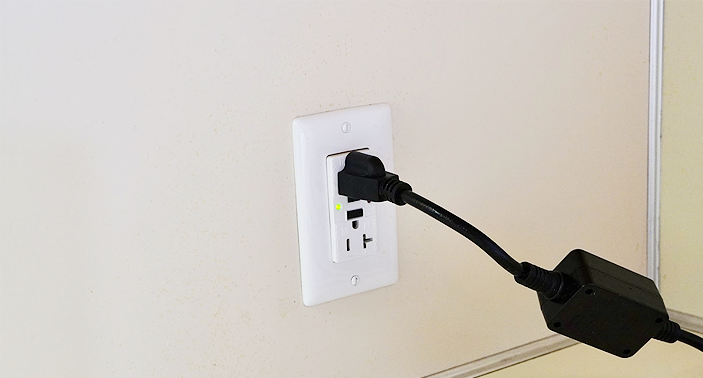

The power cord is already connected to the device. Plug it into a 3-prong electrical outlet. Once you have made sure that the connection is secure and safe, you can turn on the device and begin using it.

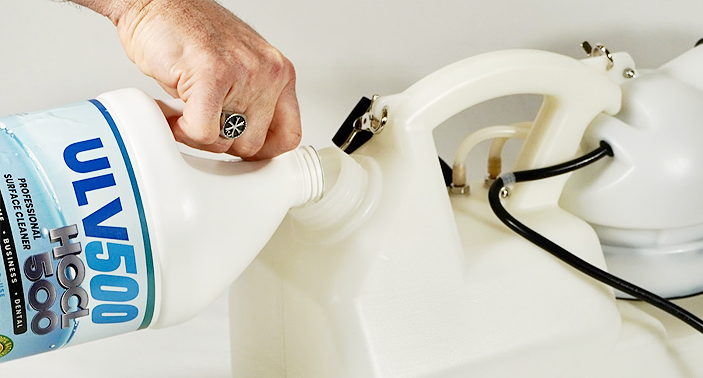

Step 2

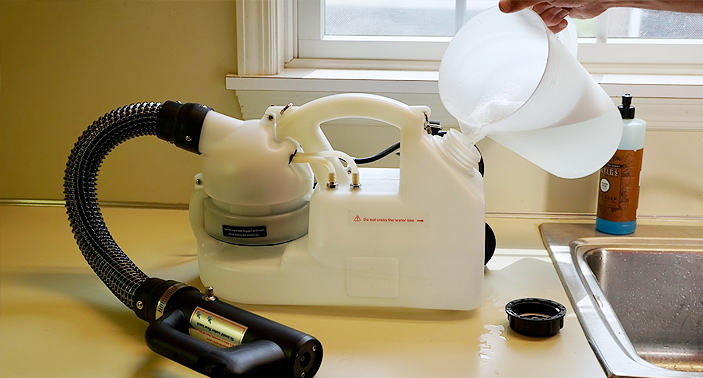

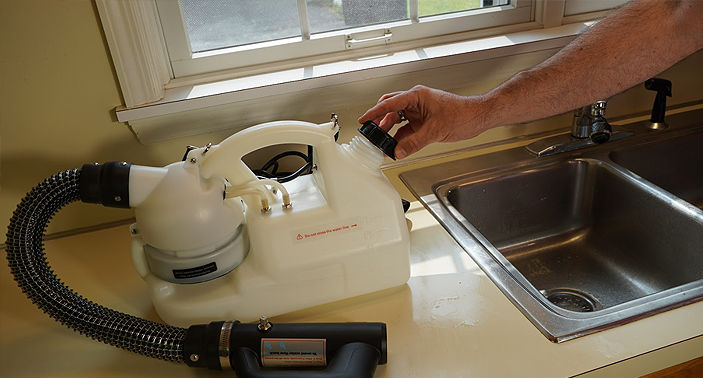

Fill the tank with the desired solution and close the tank cap.

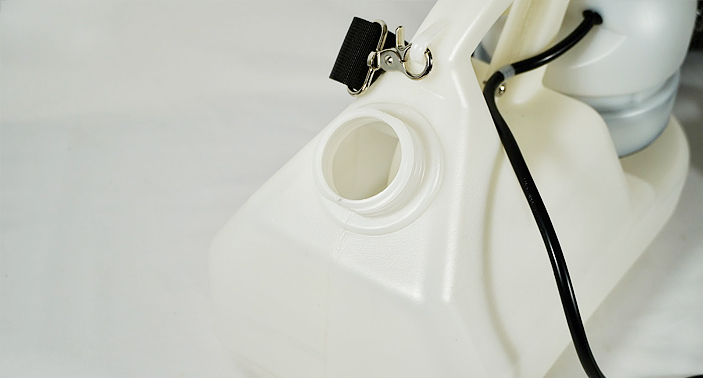

Step 3

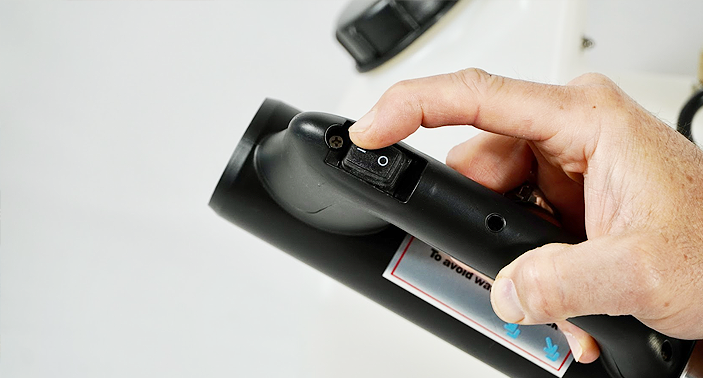

Activate the machine by pressing the switch and turning it on.

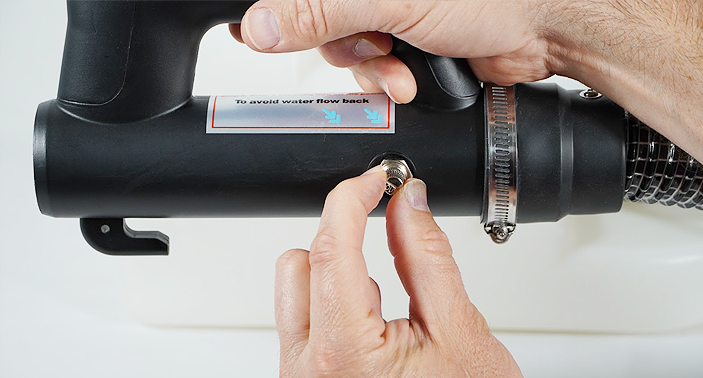

Step 4

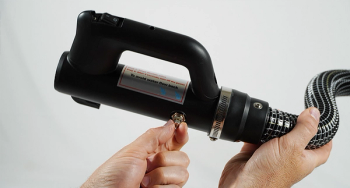

To adjust the particle size and outflow volume of the fogger, use the silver flow-adjusting knob on the spray handle.
Step 5

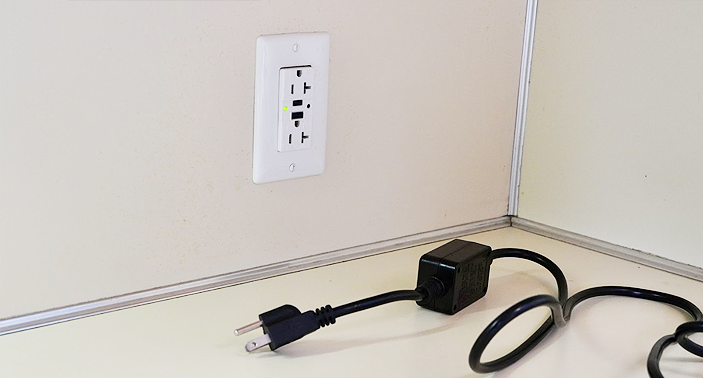

To turn off the fogger, turn the silver flow adjusting knob to the OFF position, then turn off the power switch on the handle and unplug the power cord. Remember to use protective gear and ensure proper ventilation when operating the fogger.
Troubleshooting your Compact Fogger
If you've tried turning the Compact Fogger on and it doesn't work, do this:

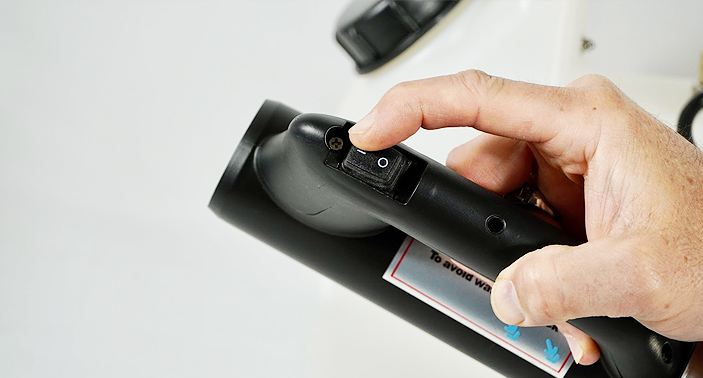

Step 1
Check the switch
When not in use, make sure that the power switch is turned off.

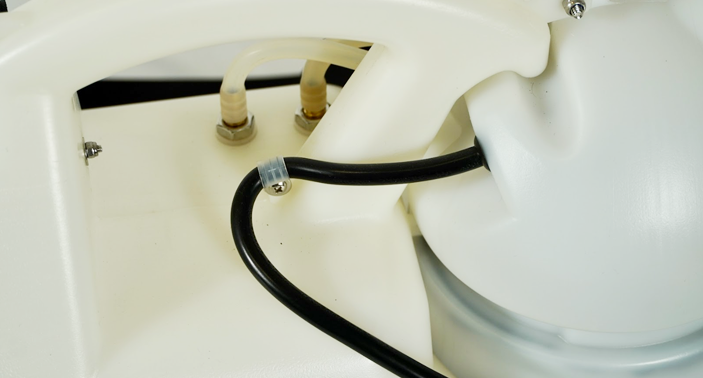

Step 2
Check the Wiring
Ensure that all the wiring is connected correctly and there are no loose wires or damaged components.
Step 3
Look for leaks
Inspect the solution tank and other components for leaks. If you find any leaks, repair or replace the affected components.
How To Clean Your Fogger?
It is necessary to keep your fogger clean, especially after use. Keeping your fogger clean will help ensure that it lasts longer and works more efficiently. To clean your fogger, follow these steps:
Step 1

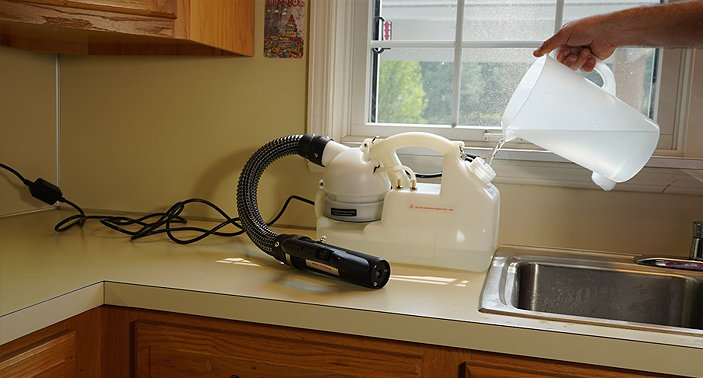

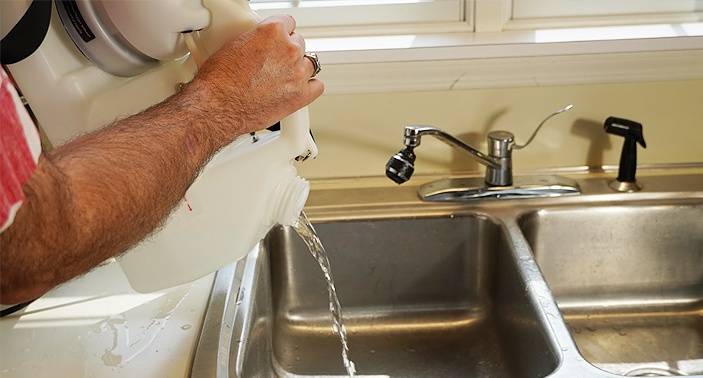

Empty any remaining solution from the tank and rinse it thoroughly with clean water.
Step 2
Fill the tank with a cleaning solution, such as water and vinegar or soap and water.
Step 3

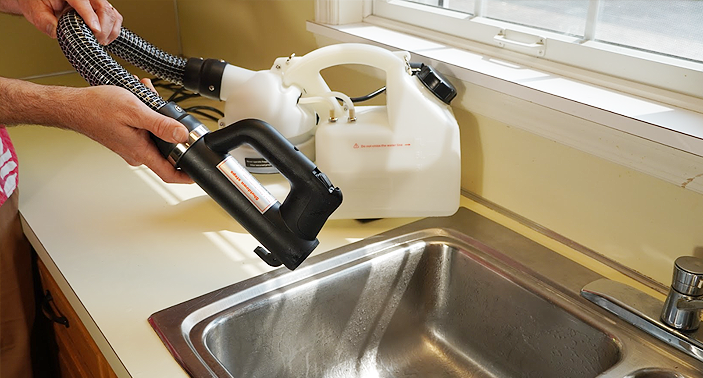

Circulate the cleaning solution through the hose and nozzle.
Step 4
Let the cleaning solution sit in the tank, hose, and nozzle for 15-20 minutes
Step 5
Rinse the tank, hose, and nozzle with clean water and pump the sprayer to flush out any remaining residue.
Step 6

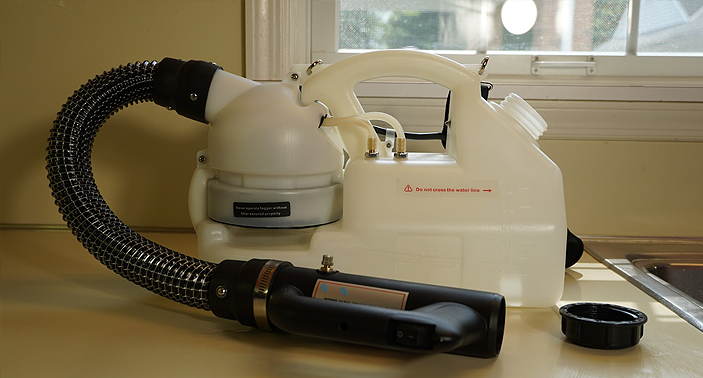

Let the fogger air-dry, and store it in a cool, dry place.
How To Prime the Pump?
To prime the pump, follow these steps:
Step 1

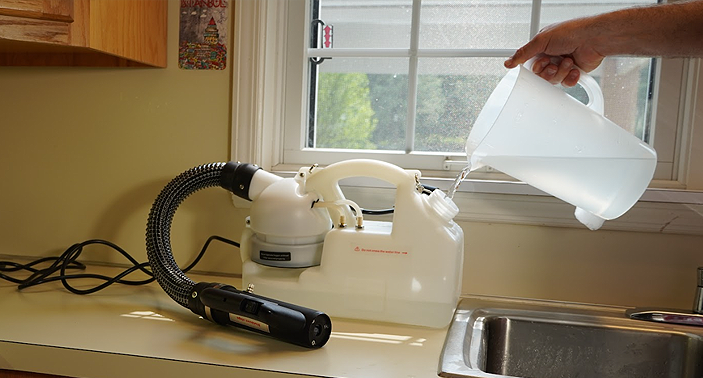

Add 2 gallons of warm soapy water into the tank.
Add 2 gallons of warm tap water to the tank. To this add 2 teaspoons of liquid dish soap. Shake gently to mix.
Step 2
Tighten the lid and turn on the unit
Make sure that you have tightly closed the lid. Depending on what's causing the issue, you could have flow coming out of your hose within a few seconds to a few minutes.
How To Prepare your Fogger for Winter Storage?
Here are some things you should do with your Compact Fogger before winter comes:
Step 1
Run 2 gallons of warm water mixed with 2 teaspoons of liquid dish soap through the unit to clean all internal parts, then run 1 more gallon of warm water only through. Spray until the unit, wand & hose are fully empty.
Step 2
You may plug your Compact Foggerunit in for constant battery maintenance, or if this is not possible, simply charge fully before storage.
Step 3
Place the unit right-side-up in the warmest storage possible. Do not store long-term in temps below 32°F.

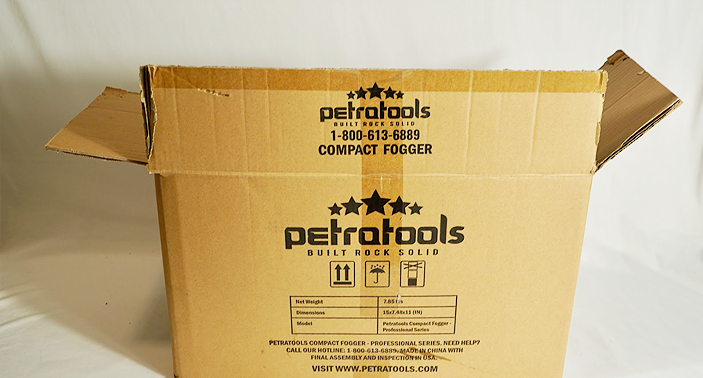

Step 4
Storage in its original closed box is ideal, but if that’s not an option, you can cover it with a canvas or plastic tarp to protect it.
